User guide

How to use the AJAX Layer Pro extension?

The AJAX Layer Pro extension will help you to improve your layered navigation easily.

You will be able to completely configure and customize the display of your filters on your Magento frontend.

Moreover, the extension will automatically generate keywords corresponding to the values of your filters in order to improve SEO on your website.

The AJAX Layer Pro extension can be installed and ready to configure in one go. For this go to:
SystemConfiguration Wyomind AJAX Layer Pro

General Settings

To begin, you can configure the general parameters of the AJAX Layer Pro extension. Several options are available:

  • Meta Robots
    Allows changing meta robots value when filtering. This is useful to avoid search engines indexing all pages containing filter parameters.
  • Enable AJAX Navigation
    If enabled, the page will not be refreshed each time an option is clicked.
  • Enable Auto Scroll
    If enabled, the page will auto-scroll to the top each time an option is clicked in AJAX mode.
  • Enable AJAX Toolbar
    If enabled, the page will not be refreshed each time a link in the toolbar is clicked.
  • Enable SEO Keywords
    If enabled, the option ids present in URL will be replaced by the associated keywords (the keywords are automatically generated from attribute option labels).
  • Replace All Special Chars
    If enabled, all special chars will be replaced by a dash.
  • Items Limit
    That option allows you to limit the number of displayed items in layered navigation. This will add a Show More/Less link. 0 or empty means unlimited.

Price Slider Settings

The Ajax Layer Pro extension allows you to enable the price slider.

Note that the default Magento display is as below:


Enable Price Slider

When the price Slider is enabled, the display will be as below.

Enable Price Inputs

If the price slider is enabled, you also have the possibility to add input fields below the slider by setting Enable Price inputs to YES.

Then, when the slider and the inputs are enabled, it should look like the below screen.

Category Tree Settings

In the Category Tree Settings tab, you'll be able to configure the display of the category tree according to your needs.

  • Enable Category Tree
    If enabled, default category navigation will be replaced by a tree.
  • Expand Tree
    If enabled, the category tree will be displayed entirely.
  • Number of Levels Displayed
    You can define up to 5 levels to display.
  • Show Products Count
    You can display the number of products for each category.
  • Include in Navigation Menu
    If enabled, only categories included in the menu will be displayed.
  • Show Empty Categories
    If enabled, categories without products will be displayed.

Below is the display you can get with the above configuration.

Attributes Settings

In the Attributes Settings tab, you'll be able to define for which attribute you want to use a dropdown or display the attributes labels.

  • Dropdown Attributes
    Select the attributes that you want to display as dropdowns.
  • Label Attributes
    Select the attributes that you want to display as labels.

Below, you can see that the Category and Color attributes are managed as labels, whereas the Shoe Size attribute is managed as a dropdown.

Note that your customers can expand and collapse filters.

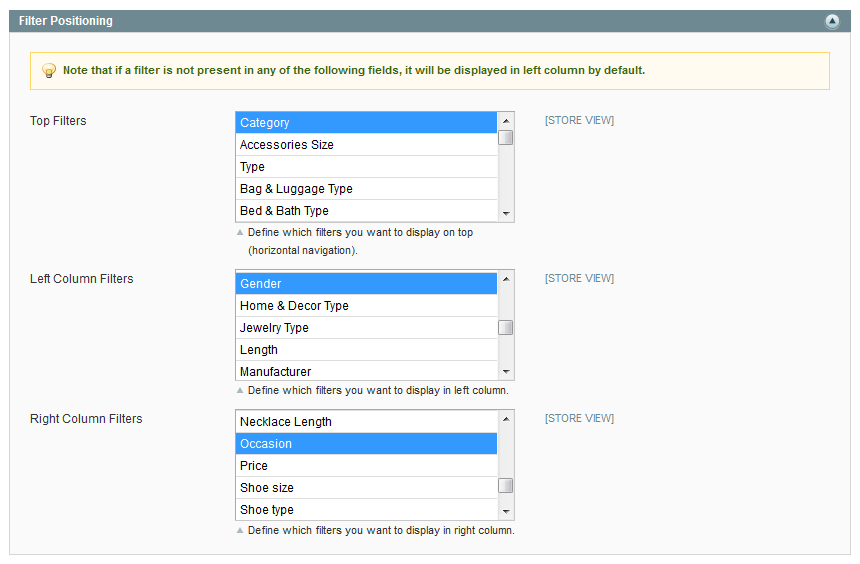

Filter Positioning

AJAX Layer Pro allows you to dispatch your filters in 3 different places. You can customize the display of your filters via 3 options:

  • Top Filters
    Define which filters you want to display on top (horizontal navigation).
  • Left Column Filters
    Define which filters you want to display in the left column.
  • Right Column Filters
    Define which filters you want to display in the right column.

In the case where a filter is not present in any of the above fields, then it will be displayed in the left column by default.

Here is the display you can get with the above configuration.

Improve your layered navigation with AJAX Layer Pro

Completely configure your filters

  • Enable the price slider and the category tree
  • Use multiple filters on the same attribute
  • Enable the AJAX navigation

Customize the display of your filters in the front end

  • Dispatch and add filters wherever you want: left, top, right
  • Display attributes as labels or dropdowns

Use optimized keywords

  • Enable the display of SEO keywords in the URLs
  • Automatically generate keywords

Enjoy a fully compatible extension

  • Use the AJAX Layer Pro with any theme
  • Configure the extension for a multi-store website
  • Use the Elasticsearch extension without compatibility issues
Freqently Asked Questions
Pre-sales informations

This extension works with Magento Community Edition and also Magento Enterprise Edition. To know if Ajax Layer Pro is compatible with your Magento version, please check the Compatibility tab.

License and domains

A license is valid for an unlimited period of time on one single Magento installation.

If you use more than one Magento installation, you will have to buy a separate license for each one.

If you run several domains on the same Magento installation, you will need only one license for all of them.

Although your license doesn’t have a limited period of validity, your support period does. By purchasing an extension, you’ll be granted a 6-month support period for free. Passed this period, you will have to renew your Support plan (see FAQ: How to extend my support period?).

You can pre-register your live domain to your license in advance.

Thanks to this option, you'll be able to get the extension ready to use on your domain before it goes live.

To pre-register your production domain:

  1. Go to:
    mY accountLicenses & DOwnloads
  2. Click on  next to the extension you want your domain to pre-register on.
  3. Click on the link at the bottom of the page saying:
    Do you want to pre-register your domain in order to be ready to go live?
  4. Finally, enter your domain name and click on pre-register now .
Attention, this doesn't mean your license is activated. You'll still have to activate it on your new domain when the extension is installed.

One license is valid for an unlimited period of time on one Magento installation only.

It is possible, however, to extend or transfer your license in 2 cases:

  • If you'd like to add your testing environments to your license.
    In this case, it is possible to extend your license to an unlimited number of domains for free.
    For example or
  • If you want to transfer your license to another live domain.
    In that case, the support period for your license must still be active.

To be able to use Ajax Layer Pro on both your production and testing environments, follow the instructions below:

  1. Download Ajax Layer Pro.
    (see FAQ: Extensions download)
  2. Install Ajax Layer Pro on your production environment.
    (see FAQ: Extensions installation)
  3. Activate the license.
    (see FAQ: Extensions activation).
  4. From your Magento admin panel, enter your current Activation Key in:
  5. Save your configuration.

Now that you can use Ajax Layer Pro on your production environment, repeat the same steps as above on your testing environments.

The only difference this time: a notification will appear in your Magento admin

You will be given a choice between:

  1. buy a new license now
  2. add this domain to my license

Click on Add this domain to my license.

A transfer request will then be sent to our team within an hour.

Once the request is taken care of, you will receive a confirmation email.

If your transfer request is accepted, you can use Ajax Layer Pro on both environments at the same time.

The order in which you activate your license on your domains does not matter.
You can start with your staging/dev/local environment or with your live domain, the process will be the same.
Modules versioning and download

In order to download Ajax Layer Pro, log into your Wyomind account:

    1. Go to:
      my accountLicenses & downloads
    2. Click on the  icon next to Ajax Layer Pro.

      A new window opens.

    3. Choose the version of Ajax Layer Pro.
      You will be able to choose the most recent version of Ajax Layer Pro (for both Magento 1 and Magento 2).
    4. Click on  .

Your download can start.

When purchasing an extension from, you benefit from a lifetime upgrade. You can at any time download the latest version of the extension directly from your account.

To upgrade Ajax Layer Pro, follow the steps below:

  1. Go to:
    my accountLicenses & Downloads
  2. Click on  next to Ajax Layer Pro.
  3. Choose the latest version of Ajax Layer Pro (for Magento 1 and Magento 2).
  4. Click on download .
  5. Install the new version of Ajax Layer Pro to update your Magento admin.

Modules Installation/Uninstallation

To uninstall Ajax Layer Pro, go on its zip folder and open it.

You will find a shell file (such as: that you must execute on both your server and Magento root directory.

Once the uninstallation is over, refresh your cache and enable the compiler back again (if you use it).

Before installing Ajax Layer Pro, you’ll have to:

  • Backup your Magento installation in:
    system  tools   backups
  • Disable the compiler in your Magento admin panel if it’s not already disabled:
    system  tools   COMPILATIONS
  • Refresh your cache in:
    systemselect cache typeactionsrefreshsubmit

Now you can install Ajax Layer Pro:

  1. Download Ajax Layer Pro (zip file) from:
    my account my downloads
    Refer to FAQ here: Extensions download
  2. Once Ajax Layer Pro is downloaded, open the folder and unzip it.
  3. Copy the content of the unzip folder and paste all files and directories in your Magento root directory (the folder content can vary according to the extension but it generally includes app, lib and skin folders).

  4. Once your installation is complete, don't forget to enable the compiler back (if it was already enabled before the installation) and run compilation process.
  5. Refresh your cache, logout from your admin panel and log back in right after.

Next step is to activate your license, to do so, click here: Extension activation

Modules activation

Once Ajax Layer Pro is installed, you have to activate the license:

  1. Go to your Magento admin panel. A message pops up at the top of the page.

    If the message doesn't appear then you must check that:

    Wyomind's License Manager has not been removed from your installation.
    Wyomind's License Manager is enabled in: app/etc/modules/Wyomind_Licensemanager.xml
    The HTML output for Wyomind_Licensemanager and/or Adminhtml_Notification are not disabled in your system under: system   configuration  advanced advanced

  2. Copy your activation key.

    You can find your activation key in 2 different places:
    - In the confirmation email that you received after purchasing Ajax Layer Pro
    - In your Wyomind account:MY ACcount My downloads, select Ajax Layer Pro and click on  . A new page opens where you'll find your activation key (see below).
  3. In your Magento admin go to:
    SysteMConfigurationWyomindYour extension

    Paste the activation key in the Activation Key field and choose between the automatic (yes) or the manual (no) activation method:
    - By choosing Yes, the connection to Wyomind license server will be automatic.
    - By choosing No, you will have to log on to Wyomind license server yourself.

  4. Save the configuration.
  5. Clear your caches.
  6. A message appears at the top of your admin panel: Activate it now!  Click on that link.

  7. Copy and paste the license code in the License code field from your admin or simply click on Activate now!
  8. Finally, refresh your cache, log out and log back in straight after, to complete the installation.

To activate the license of an extension that includes other modules, you’ll have to repeat the steps described above for each extension, using the corresponding activation keys (each module has its own activation key).


If you're getting a white page using the extension, you should enable the error reporting in order to display the error. You can do that from index.php.

Most of the time log-out/log-in may solve this issue.
